VAC ONLY TRAILER UNITS

PRICES VARY BY OPTIONS CHOSEN

Please call 1-800-624-8186 with your questions!

Part Numbers:

HV500-35-GX390
HV500-35-GX690
HV500-35-V35
HV500-K-GX390
HV500-K-GX690
HV500-K-K

HotJet USA’s Vac Only units are a budget-friendly alternative to the really big vacuum trucks. For contractors and municipalities that are looking for an affordable and a more compact vacuum solution, these units are the answer.

Vac Only units are trailer mounted but are also available as skid or truck mounts. Full diesel options are available as well as vacuum units with jetter/hydro-excavation capabilities.

Download the Vac Only Trailer Data Sheet

Vac Only Trailer Overview

Vac Only Gallery

FEATURES

VAC MOTOR OPTIONS

Standard: 35HP Vanguard
Optional: 24.8 Kubota – 5lr- 850cfm

HYDRO BLASTING SYSTEMS

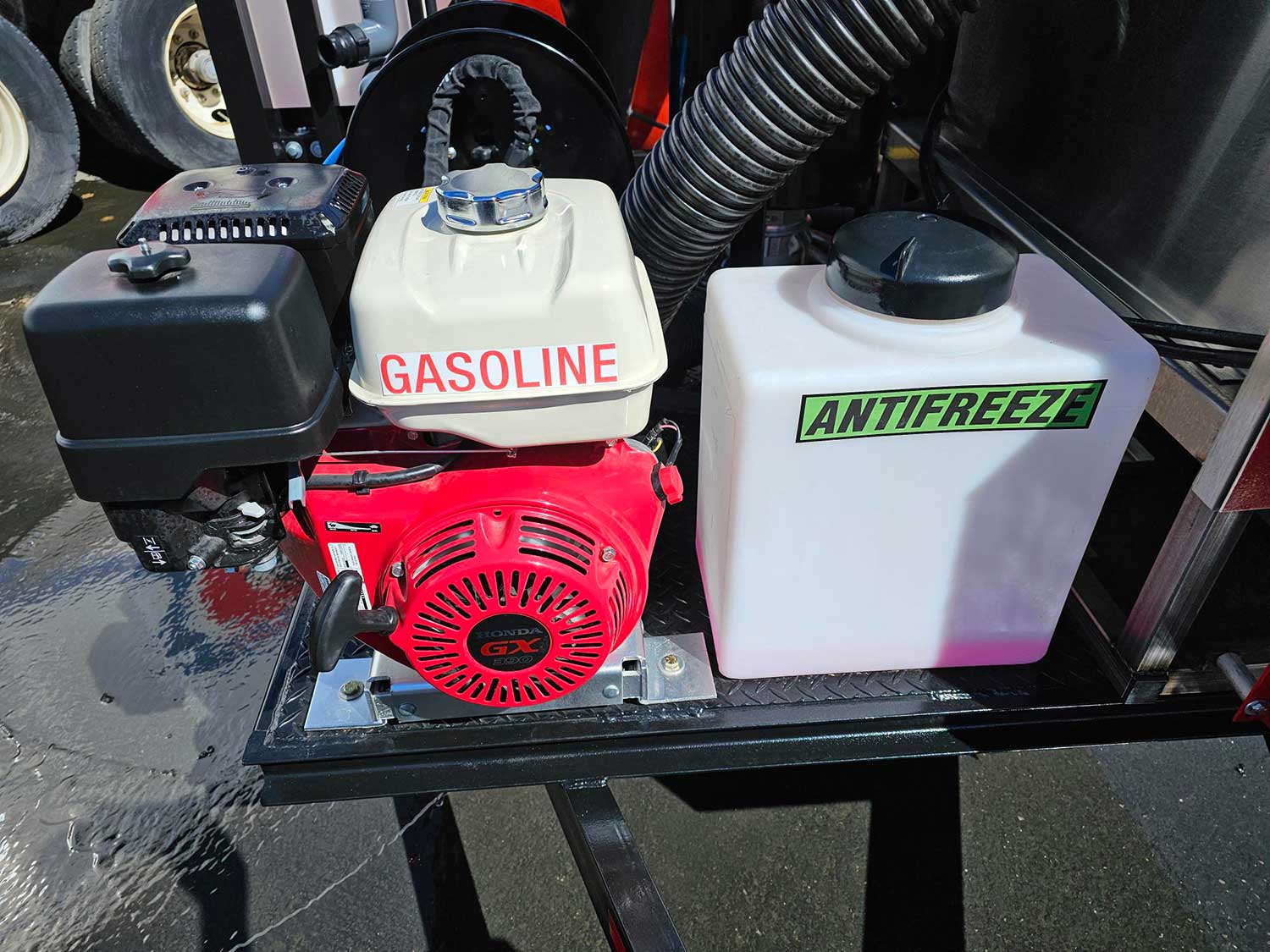

Standard– Honda GX390 – 4GPM @ 3,000 PSI
Optional: Honda GX690— 7GPM @ 4,000 PSI
Optional: 35 HP Vanguard—10GPM @ 4,000 PSI

VACUUM HOSE SIZES

2” Hose Inlet
4” Hose Inlet
4” Discharge
Site Glass
Hose Holder Bracket
Vacuum Hose- (All Cam Locked)

VACUUM SYSTEM

750-CFM 4lrSutterbuilt/GardnerDenver Pump
16” Mercury

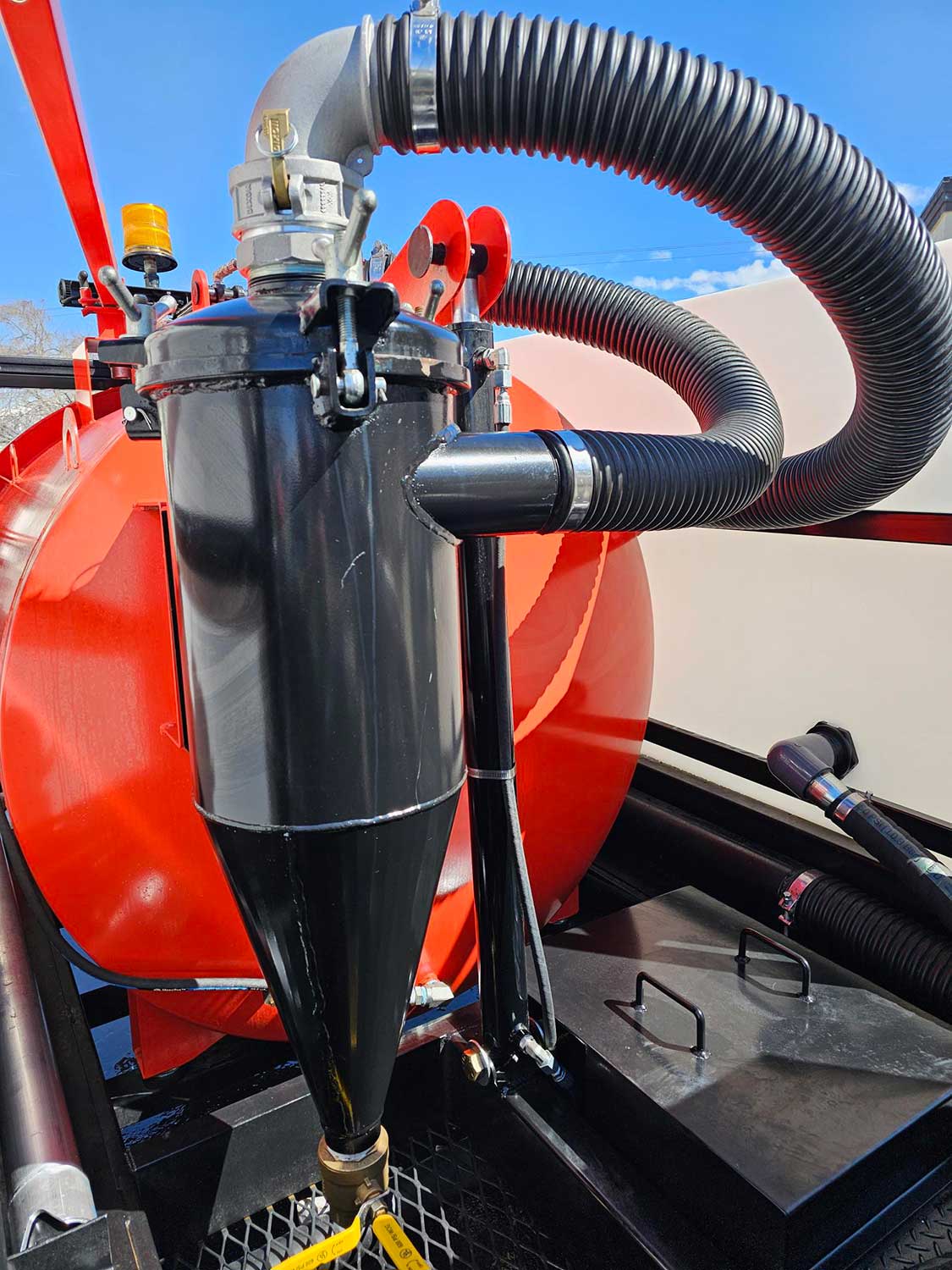

Initial Cyclonic Filter System With Drainage
Has Secondary Shut Off And Full Access
Secondary Filter (58 Micron) Replaceable (Kenworth)

WASTE TANK

500 Gl. Spoils Tank
Hydraulic Rear Lift Lid And Lift

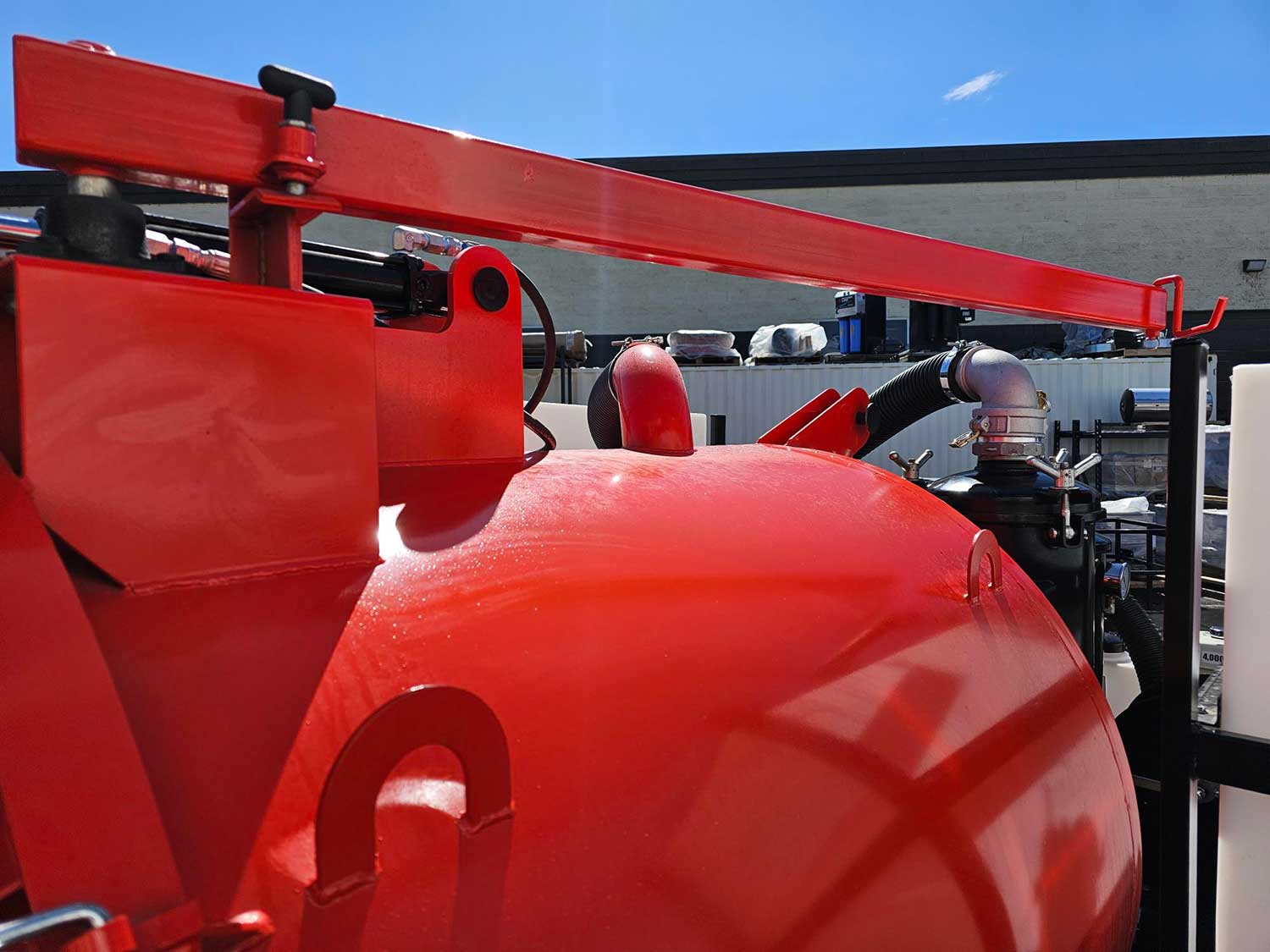

7’ Manual Support Boom

WATER TANK

Standard—2 -95gl 190gl Total
Optional – 1-165gl and 1- 95gl. 270gl Total

TRAILER

14k Rated—8 Lug
130’ Long Plus 52” Tongue
87” Wide 86” Height
HD Hydraulic Tounge Jack 8k Rated
Empty Weight #4,225
Full Weight ** #8,350 (Varies Depending Upon Load And Material)

LIGHTING

Rear Lighting Standard
Optional Directional Lighting

ACCESSORIES INCLUDED

6’ Dig Tube – 6’ X 3” With Cam Locks
Wash Wand – 4 or 6’ Trigger Controlled
4- Power Wash Nozzles
1-Rip Saw Or Machete Custom Drilled Nozzle
Hydro Flush Out System
