GENERAL SPECIFICATIONS

• 330 or 660 Gallon Water Capacity
• Molded HDP Water Tank(s)
• Nema 4 Rated Control Panel
• 10’ Safety Colored Leader Hose
• 2” x 36” Tiger Tail Hose Protector

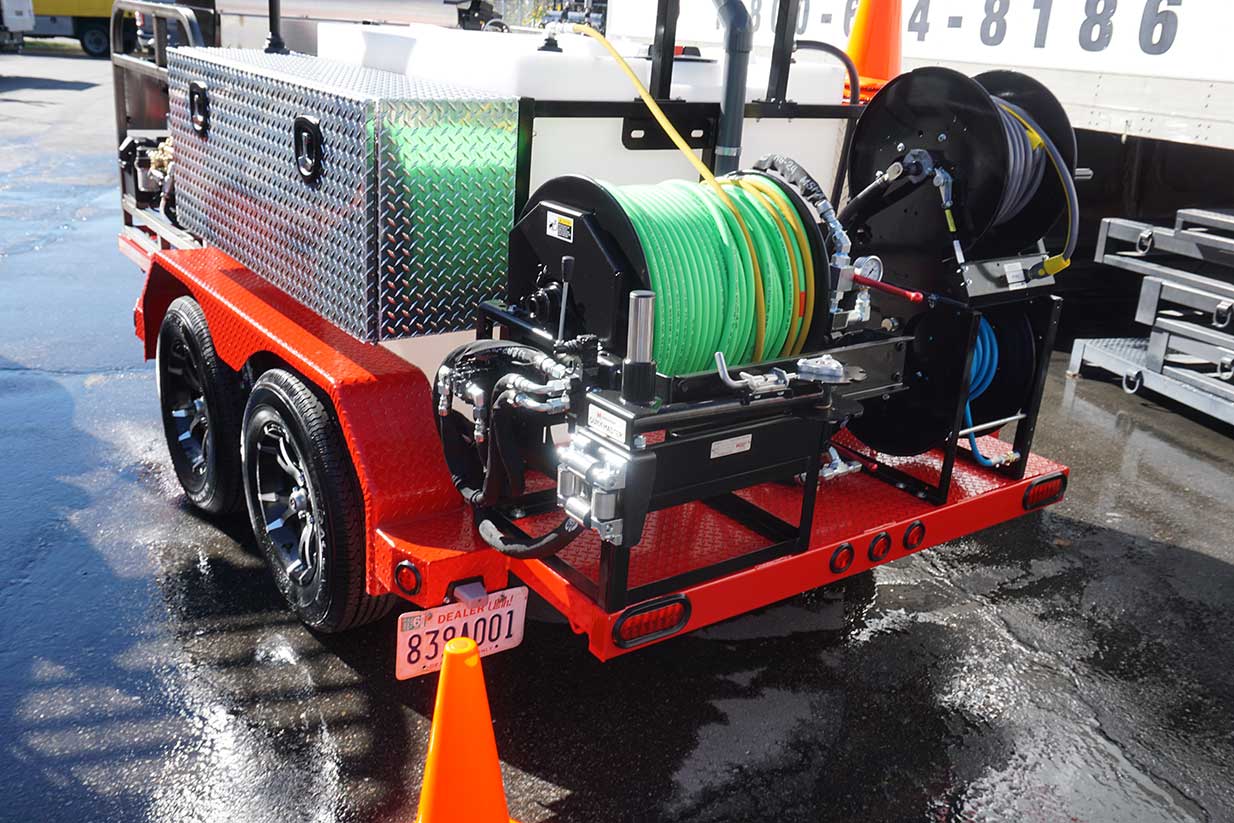

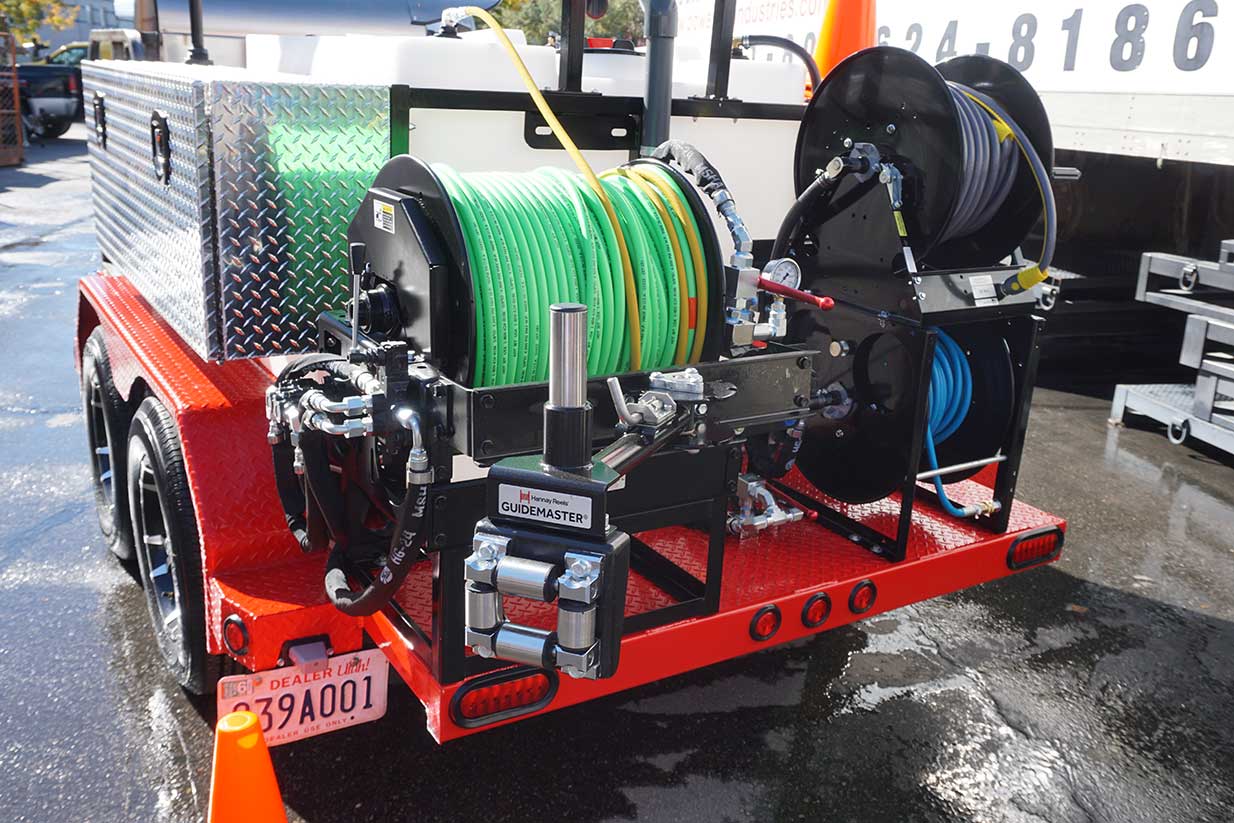

• Hydraulically powered, variable speed hose reel with your choice of hoses
• Your choice of 300’ of 3/8” steel braid hose or 300’ of ½” poly hose or 500’ of 3/8” poly hose
• Adjustable Pressure Relief/Control Valve(s)
• Adjustable Pulsation System with Control

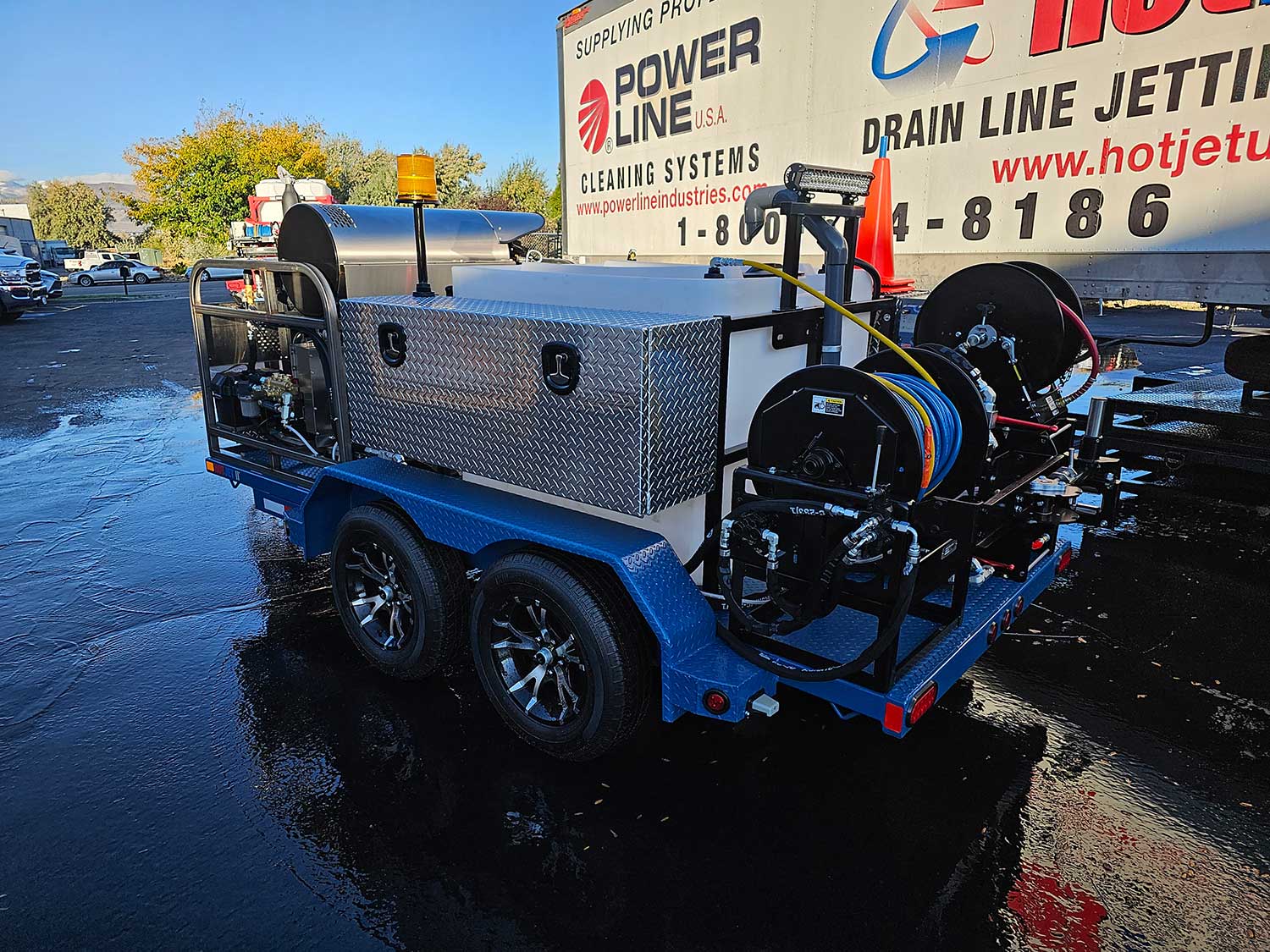

• Hose Reel with 100’ of 3/4” Supply hose
• Rotary Beacon Light
• “Fast Fill” for Hydrant Hook-Up

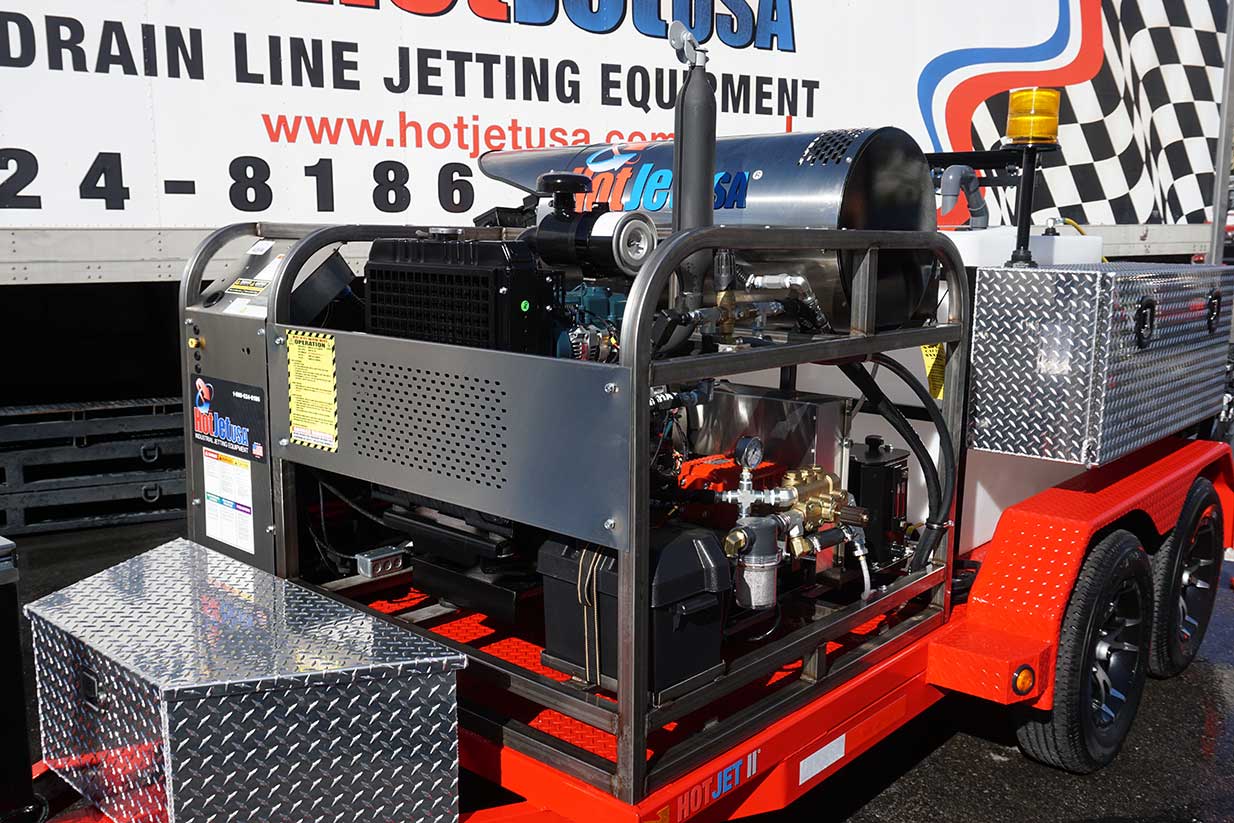

PUMP

• Premium Giant Pump 12 GPM @ 4,000 PSI
• Triple Power Belt Driven
• Dual Safety Rupture Disks and Pump Saver System
• Rear Throttle Control

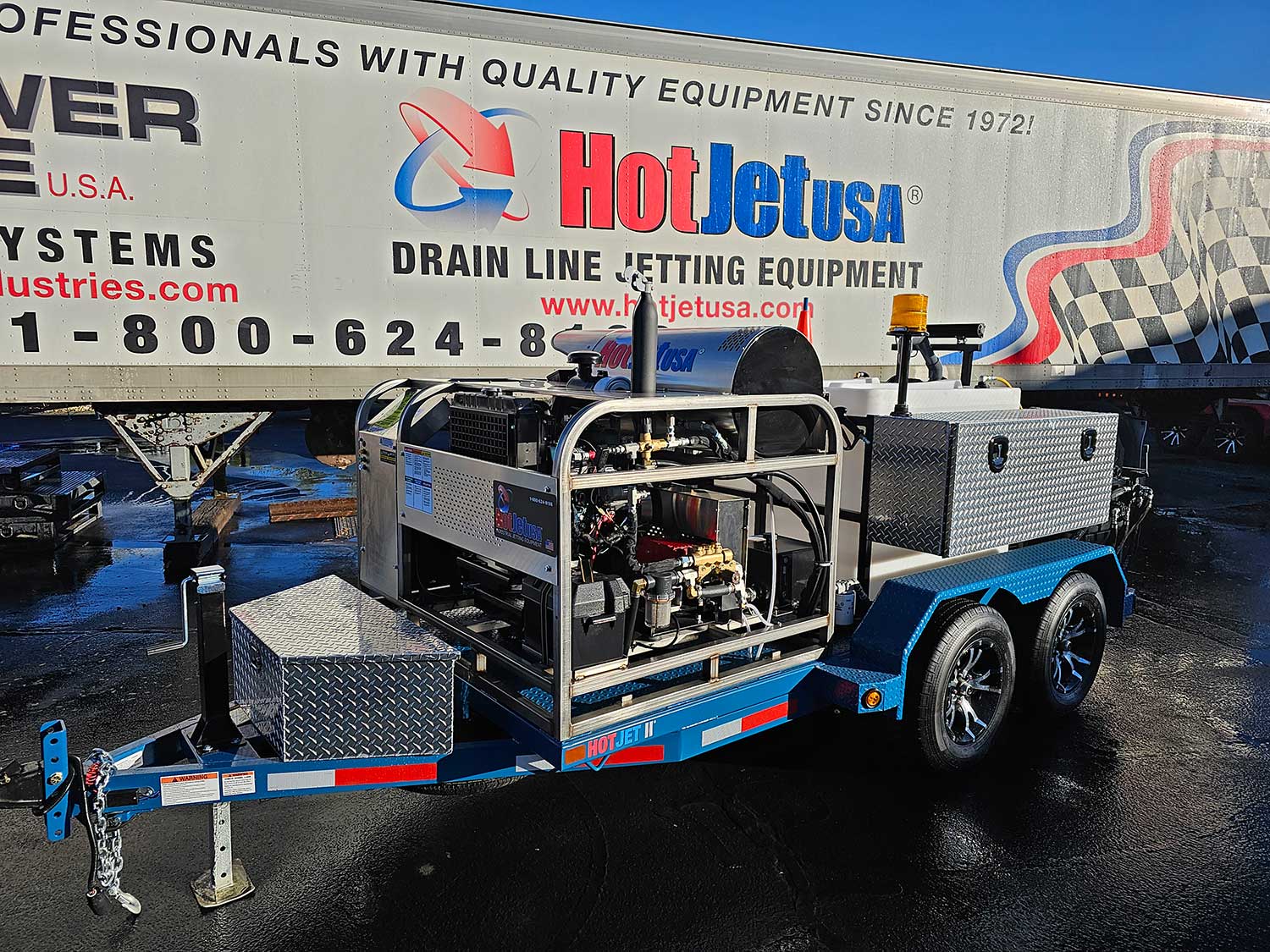

MOTOR DESCRIPTION

• 24.8 Kubota Engine
• Low Noise Muffler
• EPA Tier 4 Rated
• Low Engine Oil/High Temperature Auto Shutdown System
• 24 Gallon Diesel Fuel Tank
• Large Battery Box

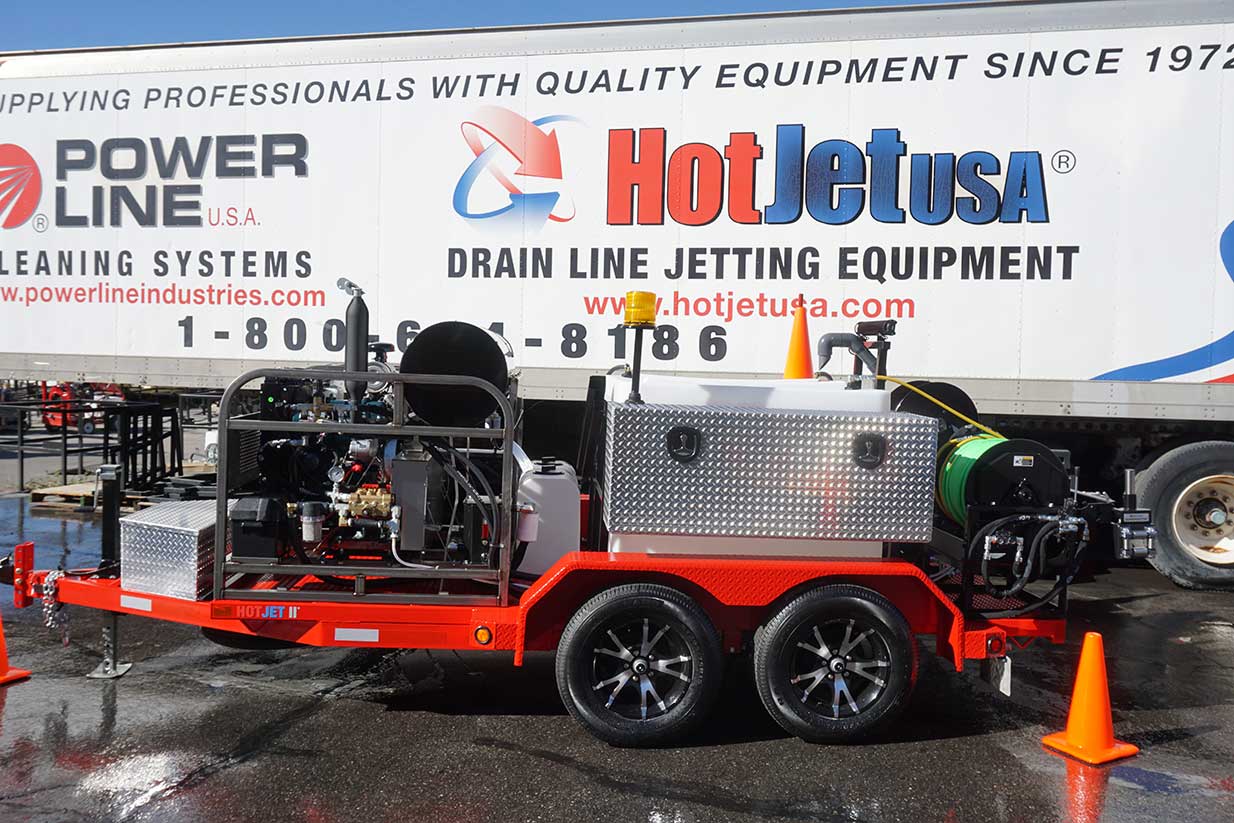

TRAILER DESCRIPTION

• Rugged, Compact Specially Engineered Trailer to Haul the Equipment and Water Load
• Leaf Spring Axles Cushion and Distribute the Weight for Easy Towing
• 5’x12’ Tandem Axle
• Tandem Axle (2 x 5,000 lb)
• Dual Axle Brake – DOT Legal in all 50 States
• Full Premium Powder Coat

NOZZLES

• Warthog
• Lazer
• Ram

OVERALL DIMENSIONS

• Overall Length 16’ 6” incl. hitch
• Deck Length 12’
• Height 8’ w/safety light
• Overall Deck Width 7’
• Weight Dry 2,950 lbs
• Weight Full Load 6,100 lbs

Also includes our exclusive soap injection system
